Additional Information
| Manufacturer | Wulftec |
|---|---|
| Loads Per Day | More than 50 |
| Load Stability | Stable |
| Equipment Loaded By | Forklift |
| Pallet Weight | Conveyor capacity |

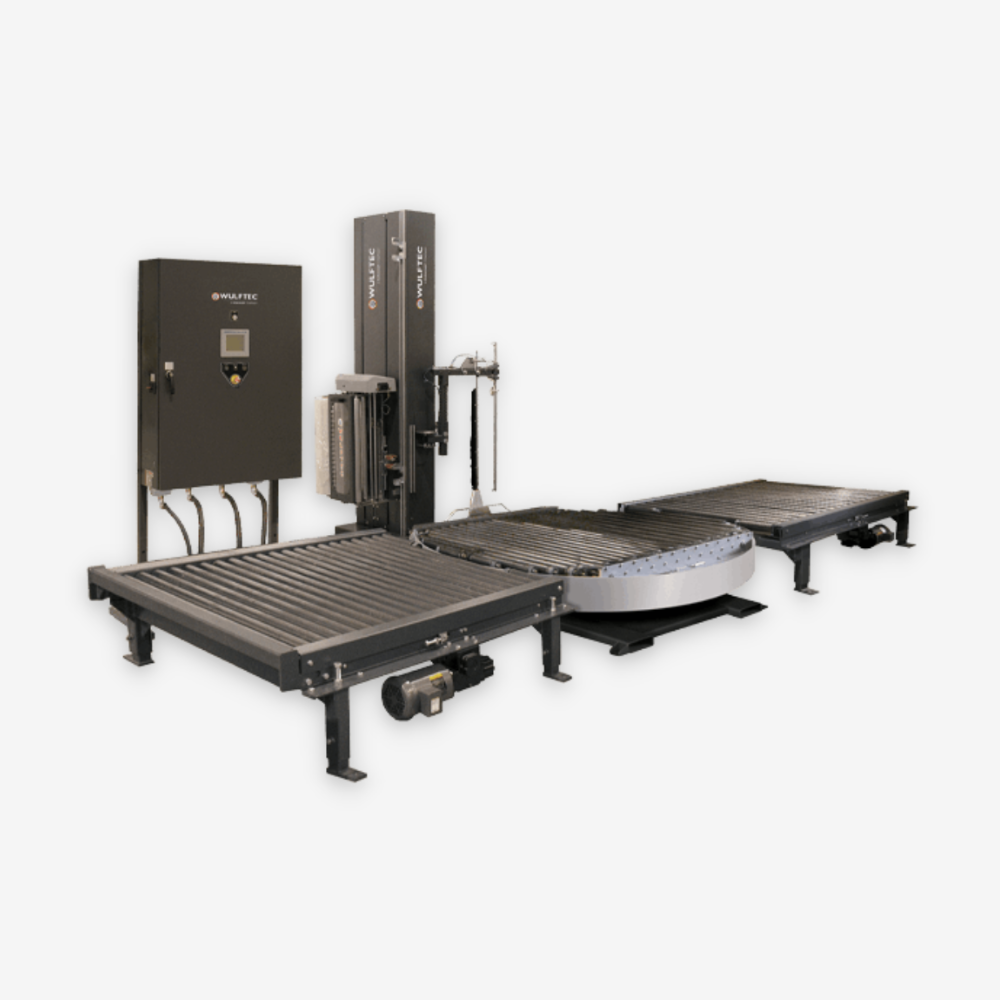

Wulftec WCA-SMART Automatic Turntable Stretch Wrapper
The WCA-SMART model, a heavy duty automatic conveyorized turntable as the ideal stretch wrapping solution for your unique needs
Features:
- 4,000 lbs load weight capacity (optional 6000 lbs)
- The control panel is UL508A approved
- 100% structural steel construction
- 25″ ring GEAR w/ pinion gear drive
- Superior Electrical/Electronic design including Allen Bradley MicroLogix 1400 PLC with an integrated Ethernet port.
- Wulftec’s exclusive 20″ NO-THREAD® Powered Pre-Stretch Carriage (30″ optional)
- Readily available non-proprietary parts
- Allen Bradley Monochrome Touch Screen – play an active part in avoiding operator errors by offering a great versatility for customized information and alarm diagnostic
Specs:
- Production Rate: 70 loads per hour
- Machine Dimensions: 135″ L x 199″ W x 100″ H
- Maximum Load Size: 48″ L x 48″ W x 80″ H
- Load Weight: 4000 lbs
- Approximate Shipping Weight: 4750 lbs
- Electrical Requirements: 230 V /2 ph /60Hz 20A
- Pneumatic Requirements: 3 cfm @ 80 psi
