Additional Information
| Manufacturer | Phoenix |
|---|---|
| Loads Per Day | Less than 50 |
| Load Stability | Stable |
| Equipment Loaded By | Forklift, Pallet Jack |
| Pallet Weight | Up to 5,000 lbs |

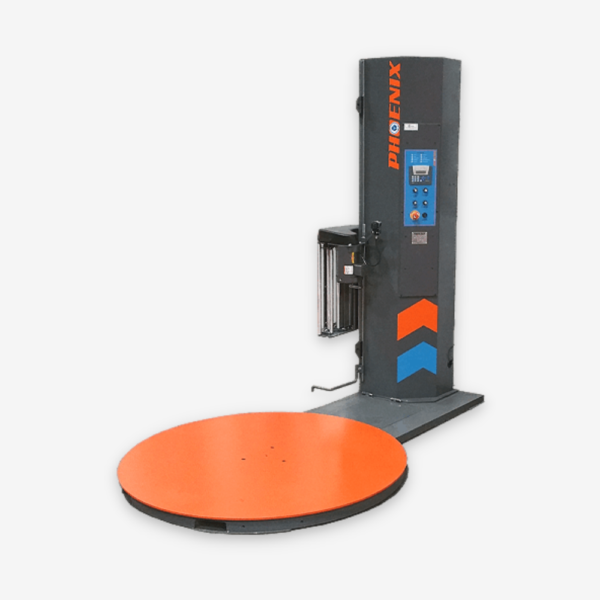

Phoenix PLP-2100 Semi-Automatic Pallet Wrapper
The PLP-2100 is excellent for the typical warehouse environment, it provides consistent, repeatable stretch wrapping performance. 4000lb Load Weight Capacity with 15 RPM Stretch Wrapping Speed is fast, reliable and built like a tank. The PLP-2100 is the “Best in Class” for control feature and capabilities.
Overview:
Capacity: 56 x 56 MAX Pallet Size (80″ Load Diagonal) Largest Stretch Wrapper Turntable Capacity in its Class.
Speed: 15 RPM Stretch Wrapping Speed. Fastest in its Class.
Best in Class Wrapping Flexibility c/w Keypad Control provides all features as standard…. Including those not available (or an upcharge) on competitive models.
- Complete Wrapping Flexibility Including: 3 Wrapping Cycles: Wrap up, Wrap up/down, Top Cover Pause.
- Reinforce Wrap and Cycle pause capability.
- Keypad controls of all parameters.
Stretch Film Saving features such as:
- Separate 1-9 top and bottom wrap count provides up to 15% Savings. Apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top & bottom regardless of need.
- Separate up and down carriage speeds eliminates the time and wasted stretch film applied with competitor’s common speed control. (Up to 10% Savings).
Standard Superior Features
- 4,000 lbs. weight capacity turntable.
- 20x- Heavy Duty Table Support Casters (No lubrication required)
- Variable Speed Drives control all motors for maximum flexibility.
- Electronic stretch film tension control with Analog electronic Sensor provides the ultimate in feedback control.
- Forklift portable.
- Heavy-Duty structural steel tubing and frame.
- Steel cross member reinforcement in tower and turntable.
- One of the lowest turntable elevation in the industry at 2 7/8″ to ease operator loading/unloading via pallet jack.
- NEMA control enclosure.
- Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
- Guaranteed For Life Prestretch rollers with 245% prestretch ratio as standard.
- 5 Year Warranty.
“Best in Class” Safety features:
- Film loading Safety Shut-off switch automatically shuts down power during stretch film loading by Operator.
- Easy Film Loading carriage with double lock door control for guaranteed locking.
- Mushroom Twist & Pull E-Stop Button.
Stretch Wrapping Options:
- 30″ Prestretch Carriage for wider stretch film.
- Extended Wrap Height Capacity up to 116″.
- Extended load diagonal for larger pallet sizes.
- Automatic End of Cycle Film Cut-Off.
Many other options are available.
