Additional Information
| Manufacturer | BestPack |
|---|---|
| Class | Fully Automatic |
| Production Rate | Up to 10 cases/minute |

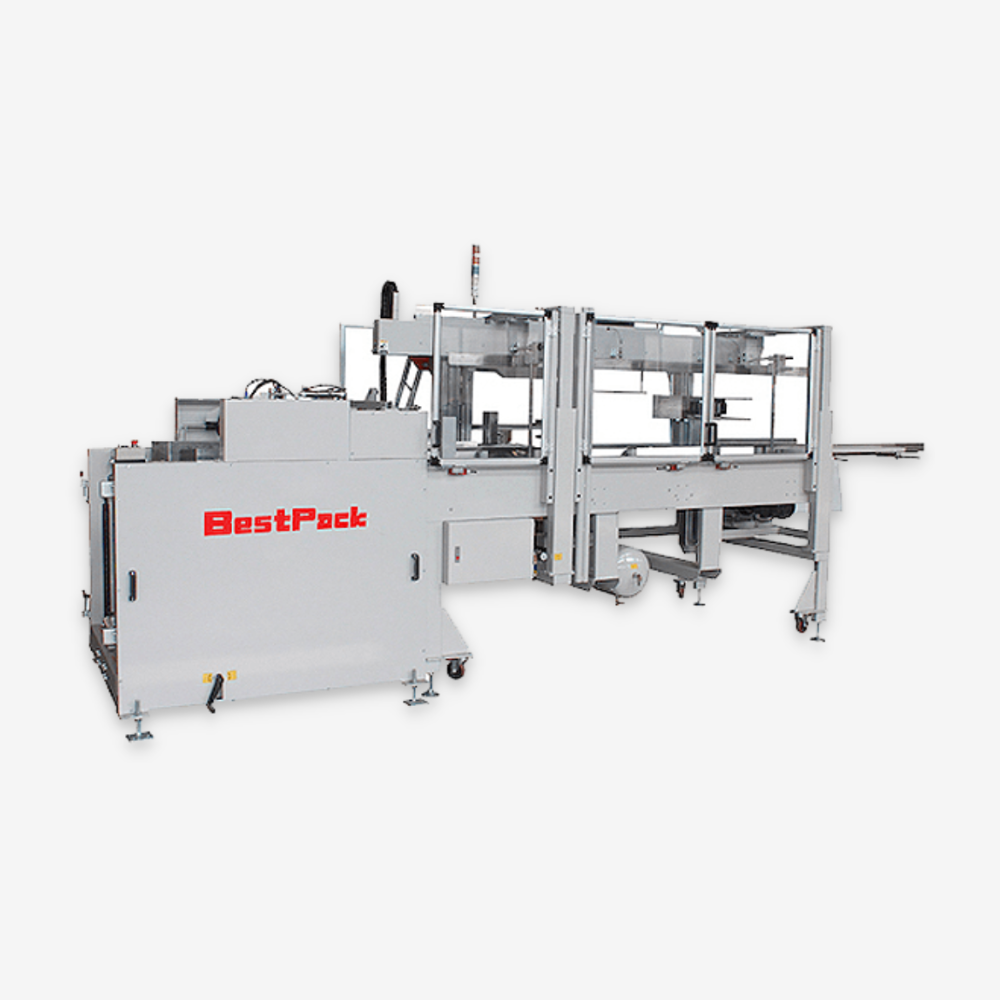

BestPack ESHT Carton & Case Erector
Our BestPack Packaging ESHT is an innovative high-performance carton erector/sealer using a top carton pull system. This design allows for large cartons that can be difficult to erect and yet still handles a wide range of carton sizes. The ESHT erector is built for heavy usage with quick and simple carton size change over. If you are looking for a simple yet heavy built carton erector, this is a must-see unit. Optional automatic infeed conveyors are available for pre-stacked cartons yet to be erected.
Our ESHT erector line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.
SPECIFICATIONS
- Speed: Up To 10 Cartons/Min.
- Power Requirements: 110 Volts 60 Hz – Single Phase
- Air Requirements: 100 Psi, 10+ SCFM
- Shipping Weight: 3,450 Lbs.
- Machine Dimensions: (198.1″) X (86.2″) X (83.1″)
- Carton Range: (12.0″ – 30.0″) X (8.0″ – 24.0″) X (6.0″ – 20.0″)
- Conveyor Height Adjustment: (25.5″ – 31.5″)
