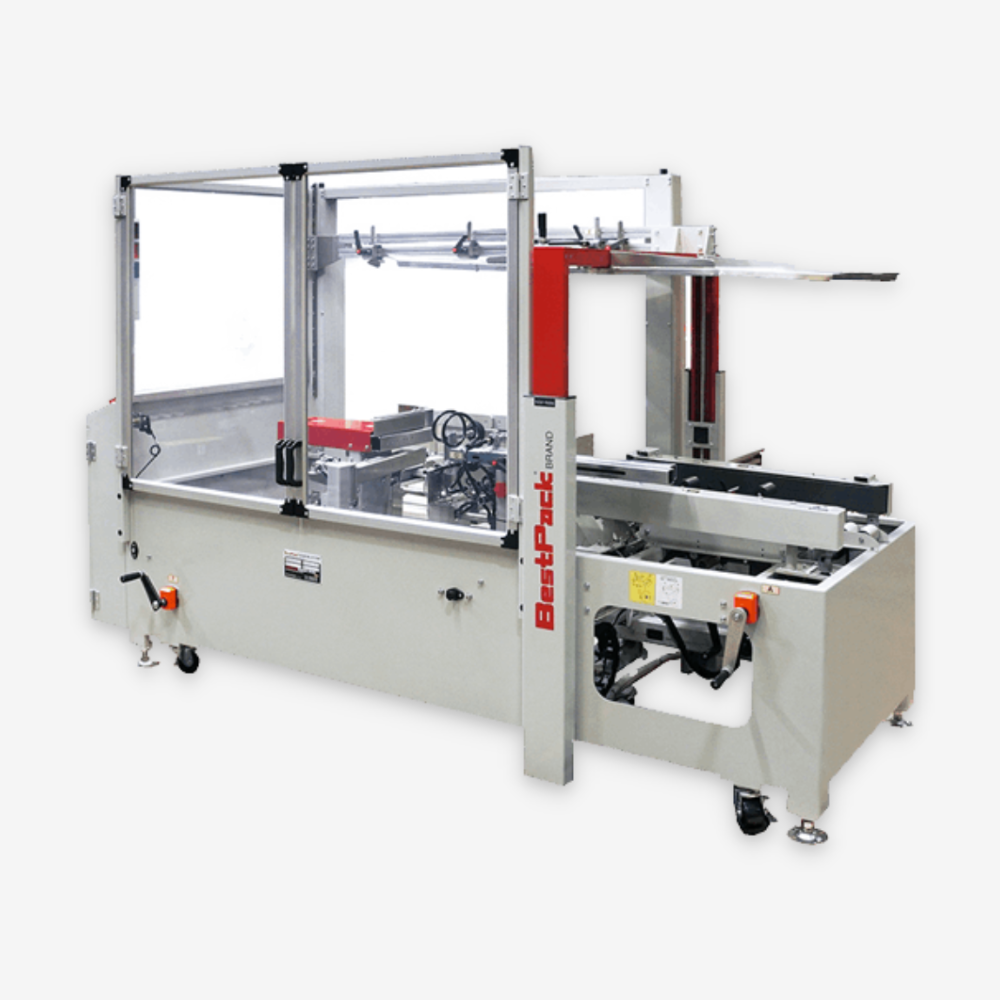

BestPack ELVS Carton & Case Erector

The BestPack™ Model ELVS is an innovative, high-performance carton erector/sealer. This erector is built for heavy usage with quick and simple carton size changeover. There are no tools required for carton size changeover. The ELVS handles a wide range of carton sizes.

Our ELVS erector line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with BestPack’s patented tab adjustment. All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

SPECIFICATIONS

  • Speed: Up to 15 Cartons/Min.
  • Power Requirements: 110 Volts 60 Hz – 20 Amp
  • Air Requirements: 80 Psi, 10 SCFM
  • Shipping Weight: 1,800 Lbs.
  • Machine Dimensions: (100.8″) X (83.0″) X (64.3″)
  • Carton Range: (7.5″ – 25.0″) X (5.0″ – 20.5″) X (3.0″ – 21.5″)
  • Conveyor Height Adjustment: (25.5″ – 31.5″)



Category:

Additional Information

Manufacturer

BestPack

Class

Fully Automatic

Production Rate

Up to 15 cases/minute
